Flight #43 - 2025b

Project: Traveler will be hosting the 2025 Great Plains Super Launch on the weekend of June 12-14. As part of that event, we will be launching Project: Traveler's 43rd flight.

Bill Brown will be hitching a ride with his Iridium payload, and we'll be flying a combination of legacy trackers and the newer ptSolar trackers.


Flight Parameters

Launch Date/Time

Saturday June 14, 2025 at 8:00am (13:00Z)



Alternative Date

n/a



Launch Site

Hutchinson Municipal Airport (38.07N, 97.87W)



Capsule 1

(Track)

Tracker: Battery powered ptSolar signing W0ZC-11

  • 300mW
  • 144.39MHz

Sensors: n/a

Beaconing: Timeslot

  • Beacons every 45 seconds
  • Path is disabled above 2000m MSL.

Cameras

  • n/a

0.35kg

Capsule 2

(Track)

Tracker: Solar powered ptSolar tracker signing W0ZC-12

  • 500mW
  • 144.34MHz
  • Courtesy Tone

Sensors: n/a

Beaconing: Delay

  • Beacons every 55 seconds depending on solar charge
  • GPS Enabled at 3.5V
  • Transmit Enabled at 4.1V
  • Path is disabled above 2000m MSL.

Cameras: n/a

 0.02kg

Capsule 3

(Track)

Tracker: Battery powered ptSolar tracker signing W0ZC-13

  • 500mW
  • 144.34MHz
  • Courtesy Tone

Beaconing:

  • Beacons every 50 seconds.
  • Path disabled above 2000m

Cameras

  • Canon 570-IS with CHDK firmware

0.70kg

Capsule 4

Tracker: Iridium Tracker

0.23kg

Recovery / Misc

Parachute and misc rigging.

0.30kg

Flight Weight

Total neck weight on balloon.

1.60kg

Balloon / Gas

1200g Kaymont with 4.2cu meters of Hydrogen.

  • Neck Lift: 3.1kg
  • Net Lift: 1.5kg



Estimated Burst Altitude

31,700m MSL (104,000')



Estimated Ascent Rate

5.6m/s (1,100'/min)



Estimated Descent Rate

4.6m/s (900'/min) velocity at touch-down.



Chase Frequencies

446.100MHz



NOTAM Filed

High Altitude Balloon from HUT VOR on radial 040 at 12 miles. 5 mile radius reaching Flight Level 600 from June14 at 1300Z to May 14 1900Z. (HUT06/014)

Revised to HUT06/017



Flight Results

Launch Date/Time

Saturday June 14, 2025 at 12:47pm (17:47Z)

Launch Site

Buhler, KS (38.143N, -97.775W)

Burst Altitude

106,086ft (32,335m)

Average Ascent Rate

6.98 m/s

Measured Descent Rate

6.69 m/s

Touchdown Site

38.198N, -97.576W

Touchdown Time

1:49pm (1849Z)

Recovery Time

3:11pm (2011Z)

Distance Traveled

18km

Total Flight Time

2 hour 2 minutes

Downloads

W0ZC-11 Log, W0ZC-11 KML, W0ZC-11 CSV, W0ZC-13 Log

Flight Predictions

Flight Predictions June 3, 2025

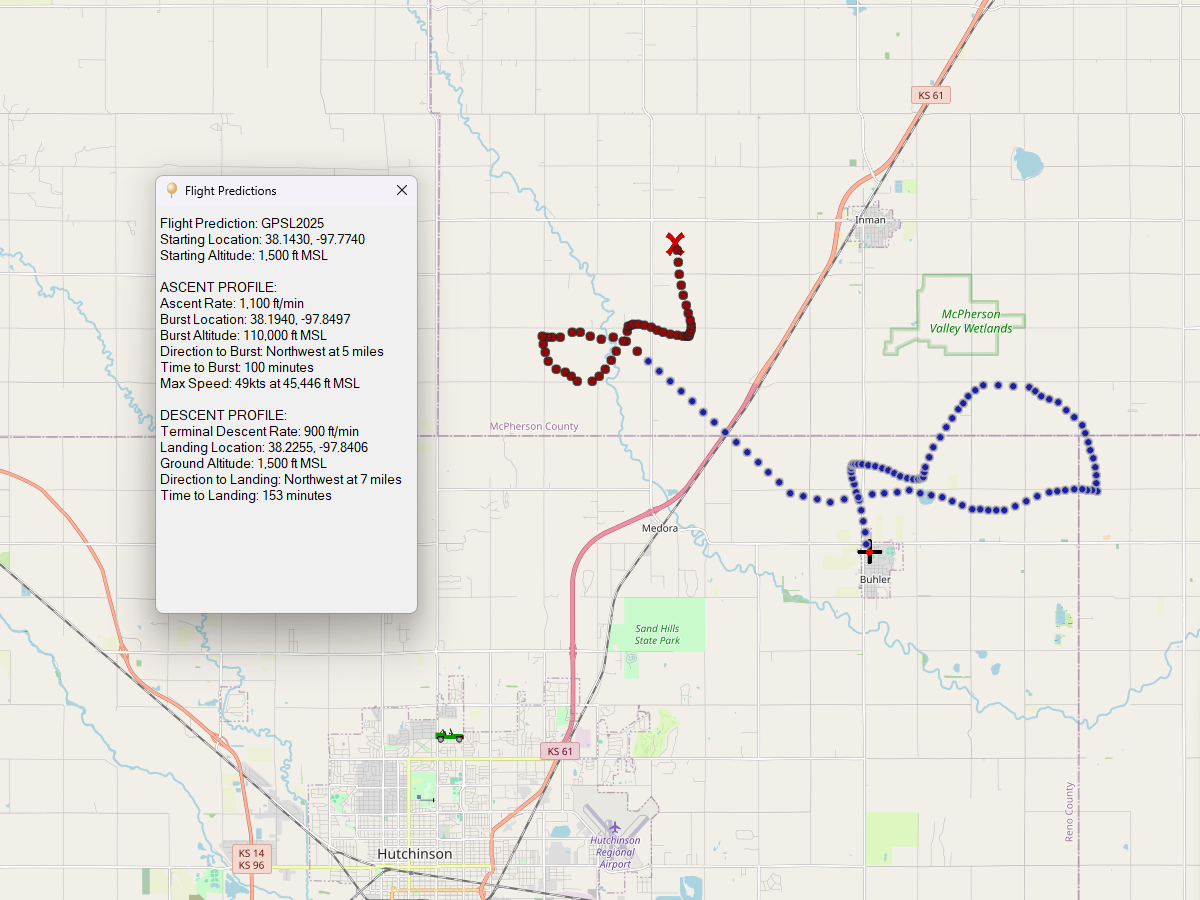

June 12, 2025

The launch site has officially been moved to the practice fields for Buhler schools. This is located at the intersection of 7th and Buhler Rd, in Buhler.

The exact course continues to flip and rotate day by day, but the pattern of staying within about 10 miles continues.

Surface weather continues to look very favorable with party-cloudy to cloudy skies, with suface winds around 10 knots.

Flight Predictions June 3, 2025

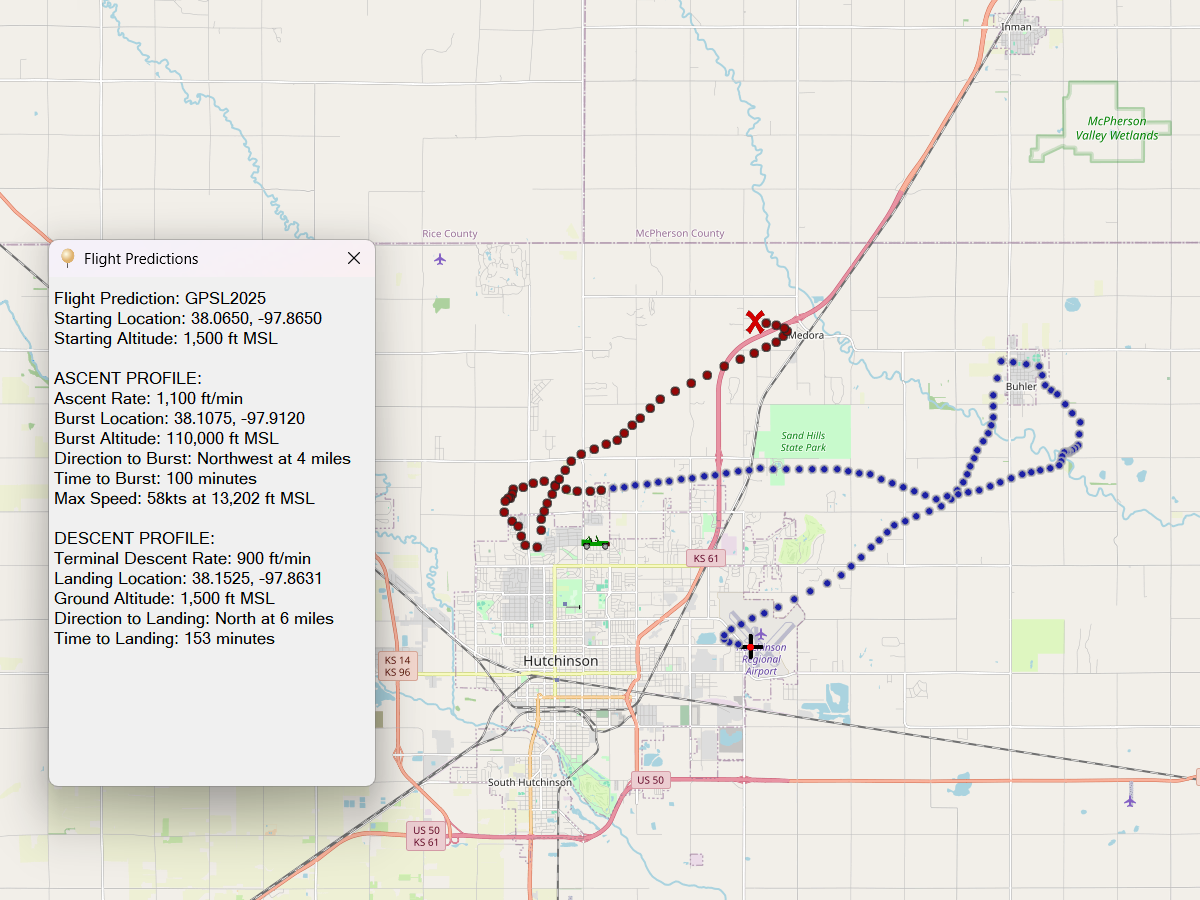

June 11, 2025

The forecast flipped again this morning, pushing north of the launch location. This particular quadrant would be ideal of a Hutchinson launch.

Continuing to watch the situation...

Flight Predictions June 3, 2025

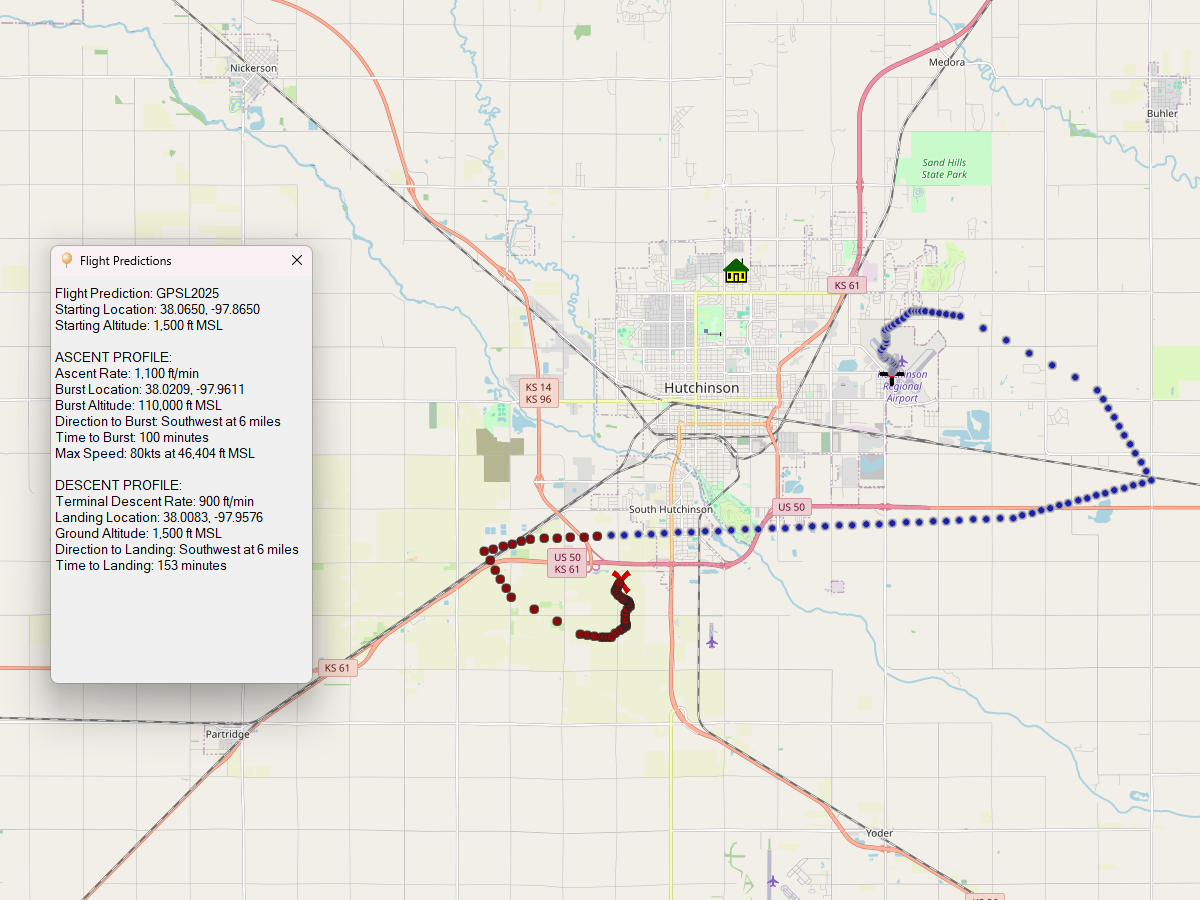

June 10, 2025

The forecast pushes back into the city of Hutchinson, and/or South Hutchinson for the second day in a row.

I've made contact with someone in Buhler to have an alternate launch location if this trend continues.

Flight Predictions June 3, 2025

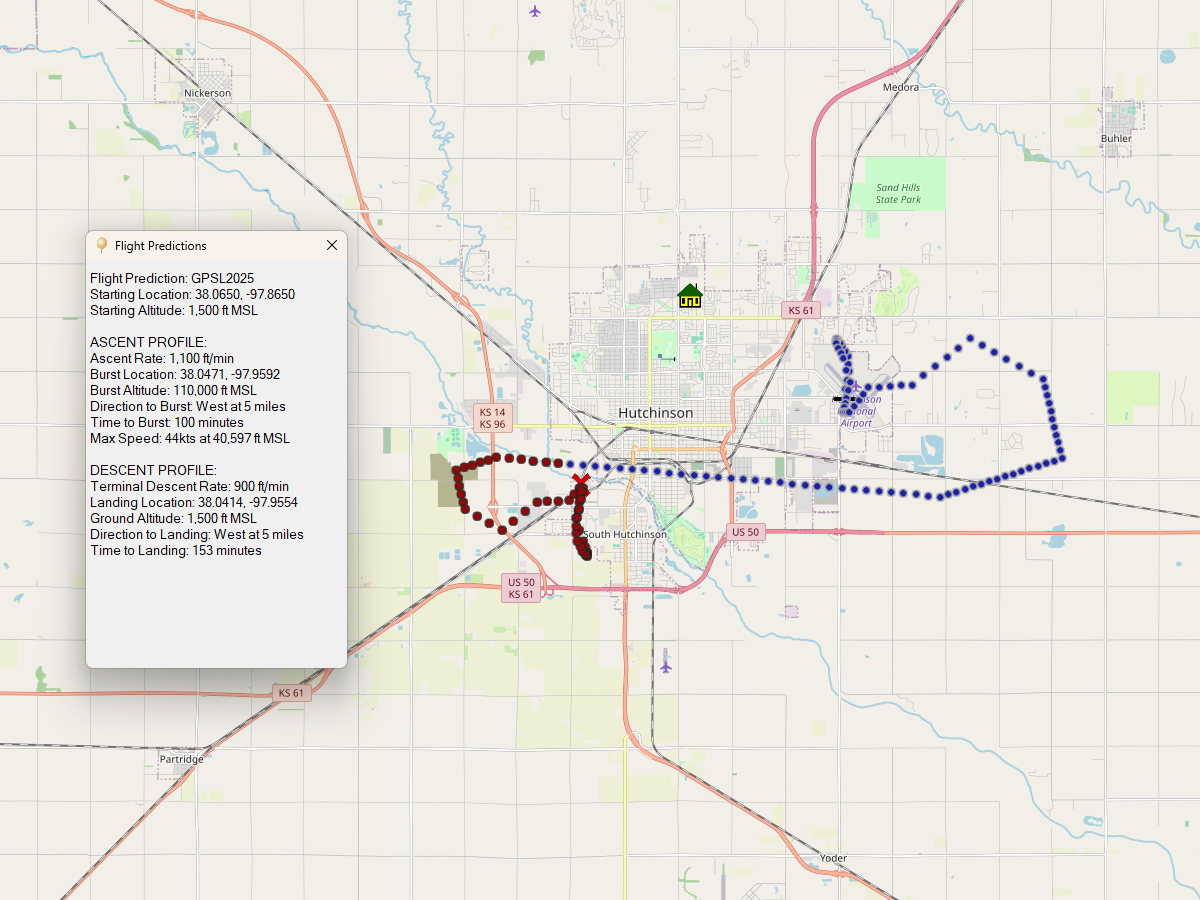

June 9, 2025

Tonight's prediction pushed back into the city of Hutchinson.

Flight Predictions June 3, 2025

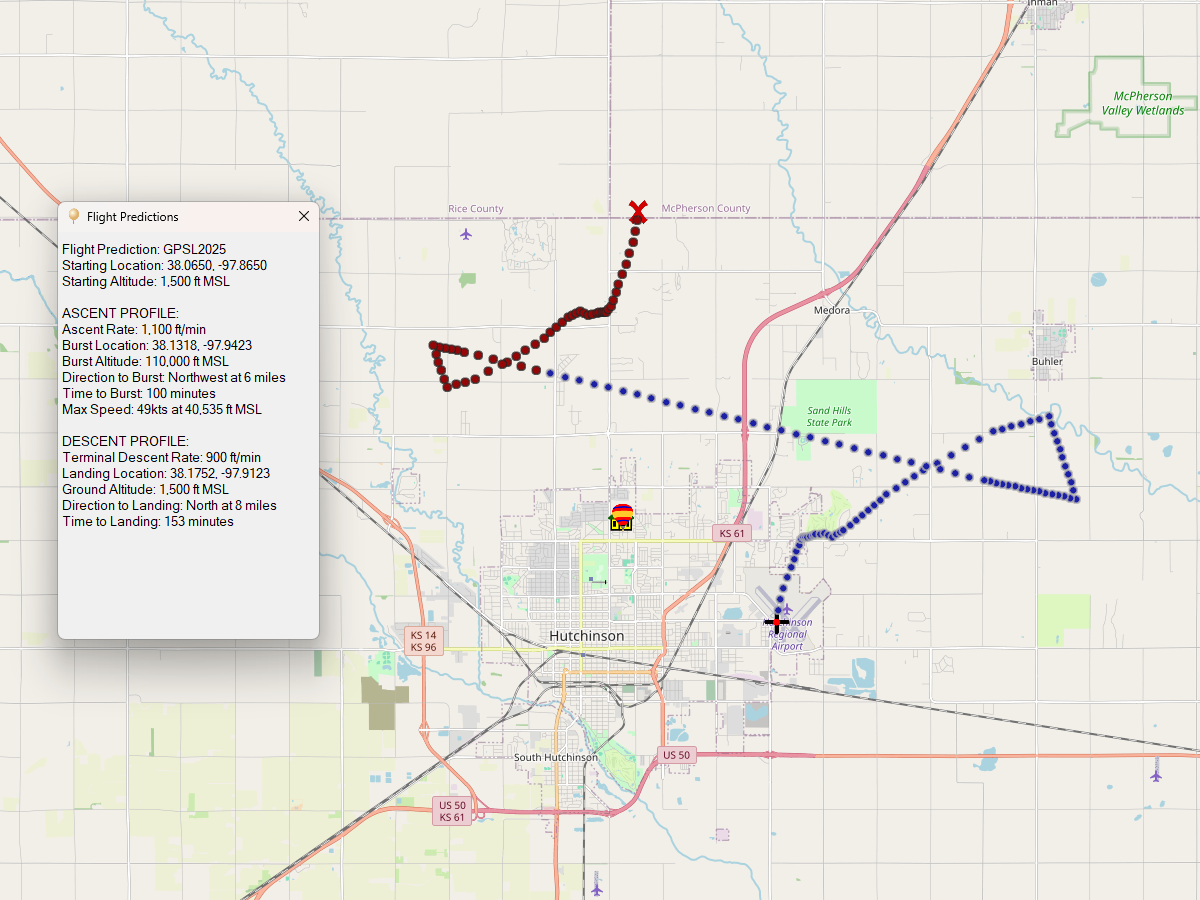

June 8, 2025

Flight predictions for today shifted north of Hutchinson.

Flight Predictions June 3, 2025

June 6, 2025

The flights continue to stay very close to the airport. If this trend continues into next week, I'll be looking to move the launch location away from the airport.

Flight Predictions June 3, 2025

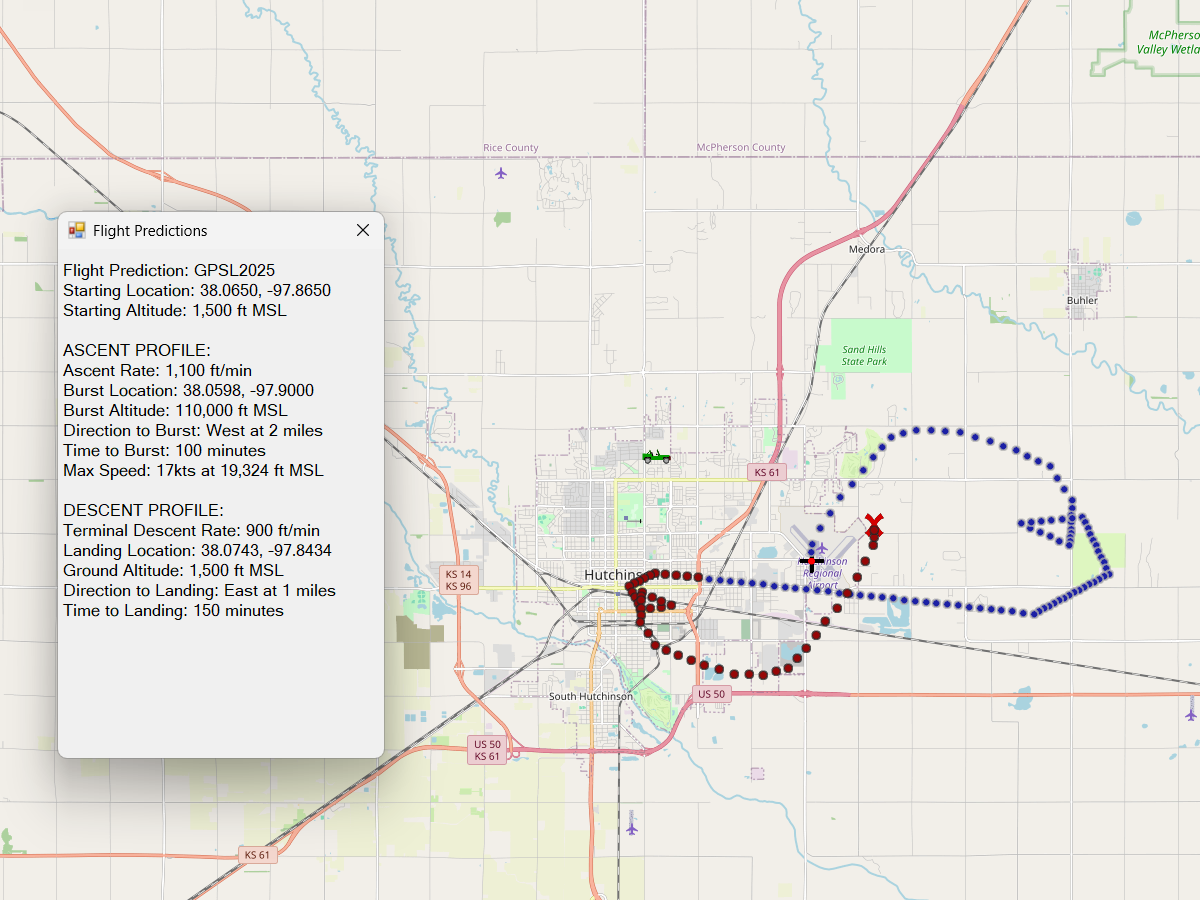

June 5, 2025

A very close-in chase continues to be in the forecast. These forecasts are creating a unique scenario where no matter where we launch from, the balloon risk coming back to the same populated area.

Flight Predictions June 3, 2025

June 4, 2025

The initial predictions for the GPSL 2025 mass-launch are looking very favorable for a very short chase.

Flight Predictions June 3, 2025

June 3, 2025

The initial predictions for the GPSL 2025 mass-launch are looking very favorable for a very short chase.
